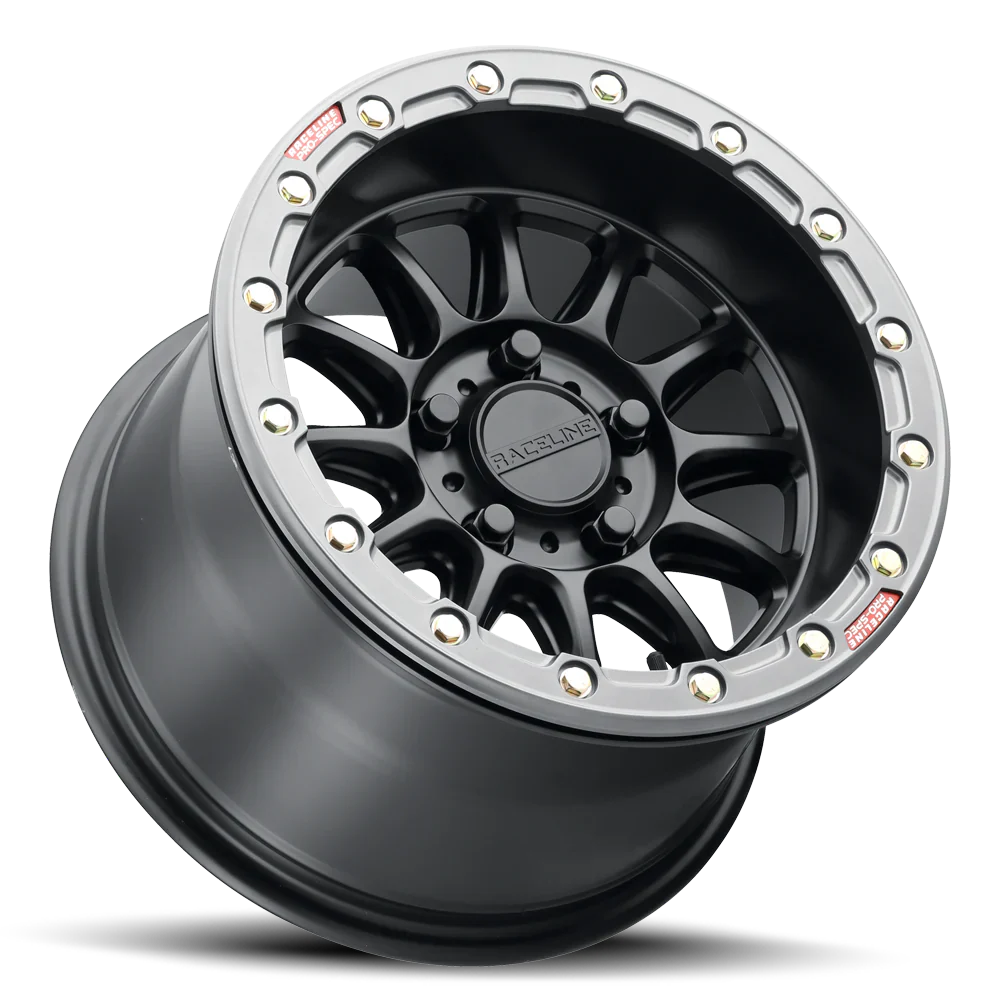

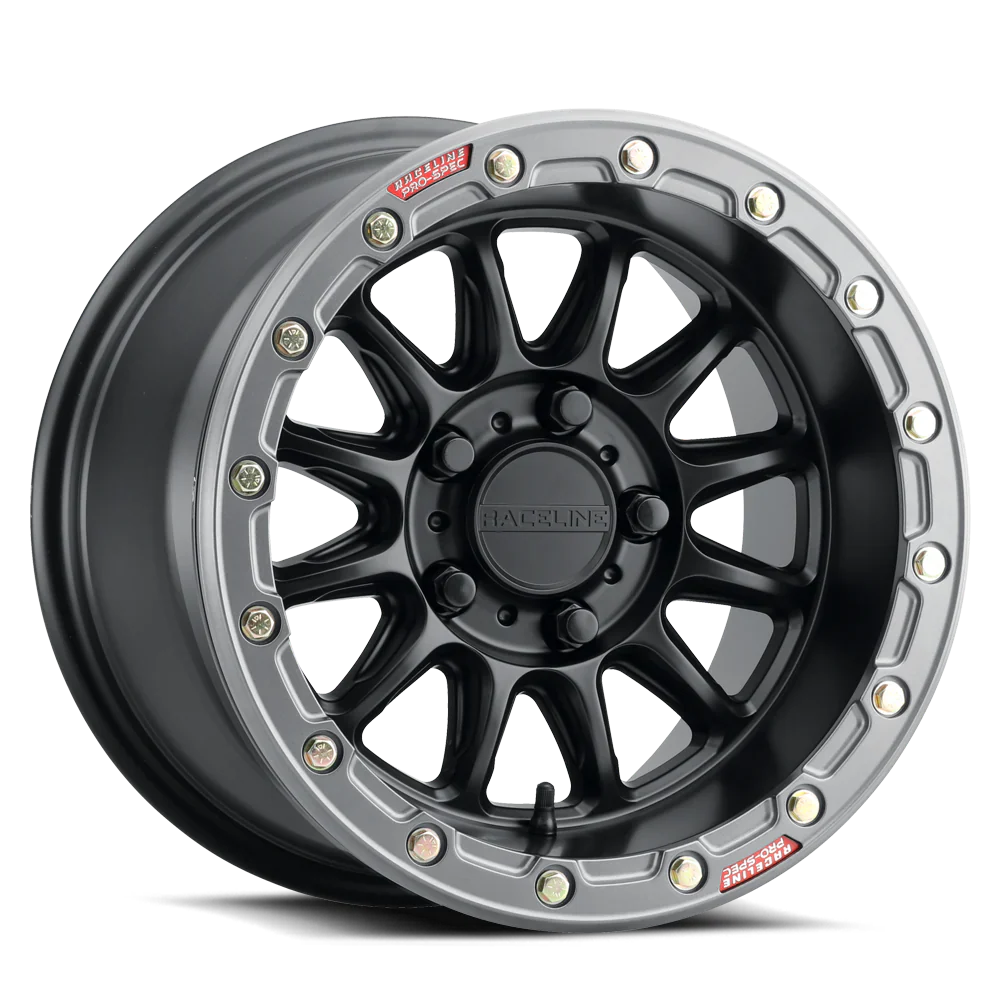

Raceline A14BG Alpha BeadLock - Black/Gunmetal
Raceline A14BG Alpha BeadLock - Black/Gunmetal
• The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZR R in 5x114.3 bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting beadlock ring gives it a true rally-inspired race look
• Constructed out of heavy-duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
• Black-Out snap-in Raceline cap with contrasting red Pro Spec beadlock logos
• Available in Satin Black w/Gunmetal Beadlock Ring and Gunmetal w/Gloss Red Beadlock Ring
• Available in 15x7 and 15x10 exclusively for the Polaris Turbo R and Pro R
• Engineered to be one of the strongest wheels available
• The Official Wheel of SCORE International
| Item Number | Size | Bolt Pattern (mm) | Offset | Hub Bore | Weight | Load Rating | Backspace |
|---|---|---|---|---|---|---|---|
| A14BG-51012+25 | 15X10 | 5X114.3 | 25 | 68 | 22.6 | 1650 | 6.38 |
| A14BG-57012+25 | 15X7 | 5X114.3 | 25 | 68 | 20 | 1650 | 4.88 |
| A14BG-57012+53 | 15X7 | 5X114.3 | 53 | 68 | 20 | 1650 | 5.98 |
| Item Number | Size | Bolt Pattern (mm) | Offset | Hub Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| A14BG-77012+25 | 17X7 | 5X114.3 | 25 | 68 | 26.65 | 1650 |
| A14BG-77012+40 | 17X7 | 5X114.3 | 40 | 68 | 26.65 | 1650 |
| A14BG-77037+25 | 17X7 | 4X137 | 25 | 110.18 | 26.65 | 1650 |
| A14BG-77037+40 | 17X7 | 4X137 | 40 | 110.18 | 26.65 | 1650 |
| A14BG-77056+25 | 17X7 | 4X156 | 25 | 132.5 | 26.65 | 1650 |
| A14BG-77056+40 | 17X7 | 4X156 | 40 | 132.5 | 26.65 | 1650 |
Original: $279.65
-70%$279.65
$83.89Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Raceline A14BG Alpha BeadLock - Black/Gunmetal
• The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZR R in 5x114.3 bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting beadlock ring gives it a true rally-inspired race look
• Constructed out of heavy-duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
• Black-Out snap-in Raceline cap with contrasting red Pro Spec beadlock logos
• Available in Satin Black w/Gunmetal Beadlock Ring and Gunmetal w/Gloss Red Beadlock Ring
• Available in 15x7 and 15x10 exclusively for the Polaris Turbo R and Pro R
• Engineered to be one of the strongest wheels available
• The Official Wheel of SCORE International
| Item Number | Size | Bolt Pattern (mm) | Offset | Hub Bore | Weight | Load Rating | Backspace |
|---|---|---|---|---|---|---|---|
| A14BG-51012+25 | 15X10 | 5X114.3 | 25 | 68 | 22.6 | 1650 | 6.38 |
| A14BG-57012+25 | 15X7 | 5X114.3 | 25 | 68 | 20 | 1650 | 4.88 |
| A14BG-57012+53 | 15X7 | 5X114.3 | 53 | 68 | 20 | 1650 | 5.98 |
| Item Number | Size | Bolt Pattern (mm) | Offset | Hub Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| A14BG-77012+25 | 17X7 | 5X114.3 | 25 | 68 | 26.65 | 1650 |
| A14BG-77012+40 | 17X7 | 5X114.3 | 40 | 68 | 26.65 | 1650 |
| A14BG-77037+25 | 17X7 | 4X137 | 25 | 110.18 | 26.65 | 1650 |
| A14BG-77037+40 | 17X7 | 4X137 | 40 | 110.18 | 26.65 | 1650 |
| A14BG-77056+25 | 17X7 | 4X156 | 25 | 132.5 | 26.65 | 1650 |
| A14BG-77056+40 | 17X7 | 4X156 | 40 | 132.5 | 26.65 | 1650 |
